Research

Strongly correlated electron systems exhibit a fascinating and diverse range of physical phenomena. Quantum many-body effects can result in collective, emergent behavior quite different from that of the individual constituents, moving independently or treated classically. Experiment and theory advance complimentary aspects of our understanding of this complexity. Computational studies make the link between new theoretical concepts, and experimental observations of new phenomena.

The major themes of my recent research are described below. A full list of publications can be found here.

Correlated molecular electronics

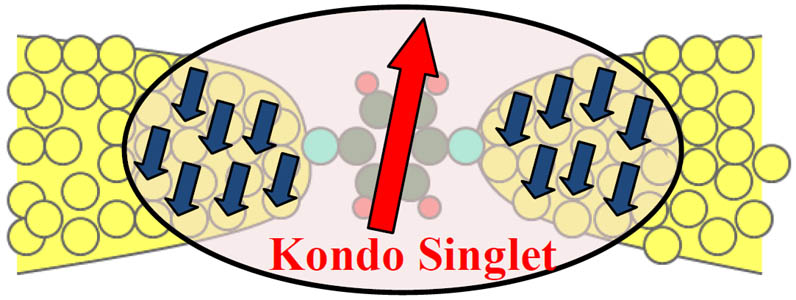

Correlated molecular electronics

Molecular electronics offers unique scientific and technological possibilities, which result from both the nanometer scale of the devices and their chemical complexity. In addition to the continual drive toward miniaturization, new functionality can be exploited when electronic components are built from single molecules because the laws of quantum mechanics govern their basic properties.
Recent advances in the construction and characterization of molecular devices have brought the exciting possibility of molecular electronics within close reach. Break-junctions in nanowires can be bridged by a single molecule to complete an external electronic circuit. A voltage bias across source and drain electrodes drives a current through the molecular junction which is characteristic of the structure of the bridging molecule and its contacting geometry. Intense experimental research into the structure-function relation has demonstrated the versatility of molecular devices and the technological utility of new design concepts.
Part of my current work involves exploring the rich new physics due to strong electronic interactions in these molecular electronics devices.

Quantum dot nanodevices

Quantum dot nanodevices

Quantum dot devices exhibit a fascinating range of strongly-correlated electron physics. At low temperatures in particular, Kondo physics can dramatically change the observable transport properties. Coupled quantum dot devices offer advanced functionality due to the interplay between orbital/geometrical effects, spin and Kondo physics. New screening mechanisms and quantum phase transitions can be realized, and distinctive signatures manifest in conductance.
In two-dot systems, there is a complex competition between renormalized dot-lead interactions due to the Kondo effect, and the tendency to form localized inter-dot bound states due to direct exchange or indirect RKKY interactions:
(opens in a new window)Europhys. Lett.76, 95 (2006)
(opens in a new window)Phys. Rev. Lett.106, 147202 (2011)
(opens in a new window)Phys. Rev. Lett.108, 086405 (2012)
(opens in a new window)Phys. Rev. B85, 235127 (2012)
(opens in a new window)Phys. Rev. B91, 235127 (2015)
(opens in a new window)Phys. Rev. B92, 155104 (2015)

Multi-channel Kondo and critical non-Fermi liquids

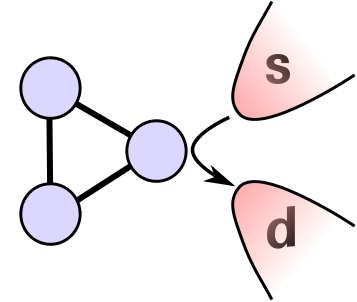

In the case of three dots, new possibilities arise -- in particular, geometrical frustration in triangular triple dots can produce new quantum phase transitions, accompanied by conductance switching; while in series, triple dots can realize multi-stage Kondo screening and incipient non-Fermi liquid physics:
(opens in a new window)Phys. Rev. B79, 085124 (2009)
(opens in a new window)Phys. Rev. B81, 075126 (2010)
(opens in a new window)Phys. Rev. B84, 035119 (2011)
(opens in a new window)J. Phys. Chem. B117, 12777 (2013)
(opens in a new window)Phys. Rev. B89, 121105(R) (2014)

Multi-channel Kondo and critical non-Fermi liquids 2

Multi-channel Kondo and critical non-Fermi liquids

The simplest system exhibiting non-Fermi liquid (NFL) behavior is arguably the two-channel Kondo (2CK) model, describing the frustrated antiferromagnetic coupling of a local spin-1/2 dot to two equivalent but independent conduction electron leads. The resulting ground state possesses various intriguing properties, including notably a residual entropy of (kB/2) ln(2) and conductance that approaches its T=0 value as the square root of T. A different type of frustration arises in the two-impurity Kondo (2IK) model, which features two exchange coupled quantum dots, each also coupled to its own lead. We showed that the quantum phase transitions and critical points of both systems are related:

screeningcloud

(opens in a new window)Phys. Rev. Lett.108, 086405 (2012)
Indeed, the same critical physics can be realized in all spin-S variants. Furthermore, generalized 2CK physics arises in serial devices with a chain comprising an odd number of dots, while 2IK physics appears when there are an even number of dots:
(opens in a new window)Phys. Rev. B84, 035119 (2011)
Quantum dot rings also show the same behaviour:
(opens in a new window)Phys. Rev. B81, 075126 (2010)
This fascinating non-Fermi liquid physics has recently been observed experimentally in quantum dot devices:
(opens in a new window)Nature446, 167 (2007)
(opens in a new window)Nature526, 233 (2015)

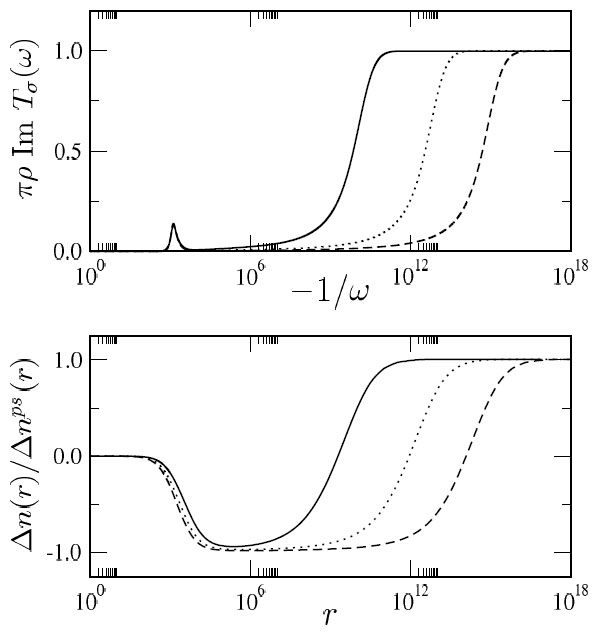

Kondo_cloud

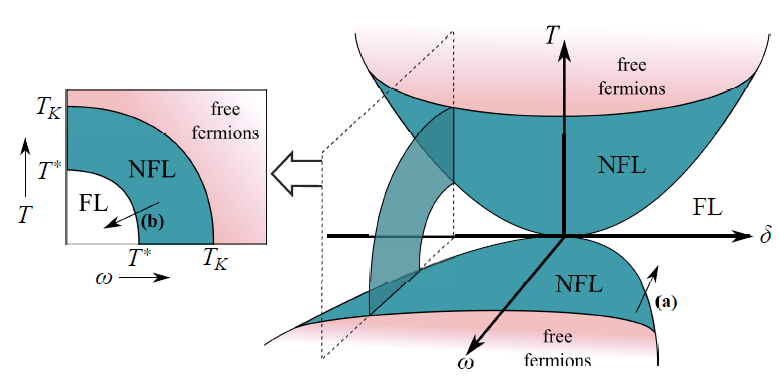

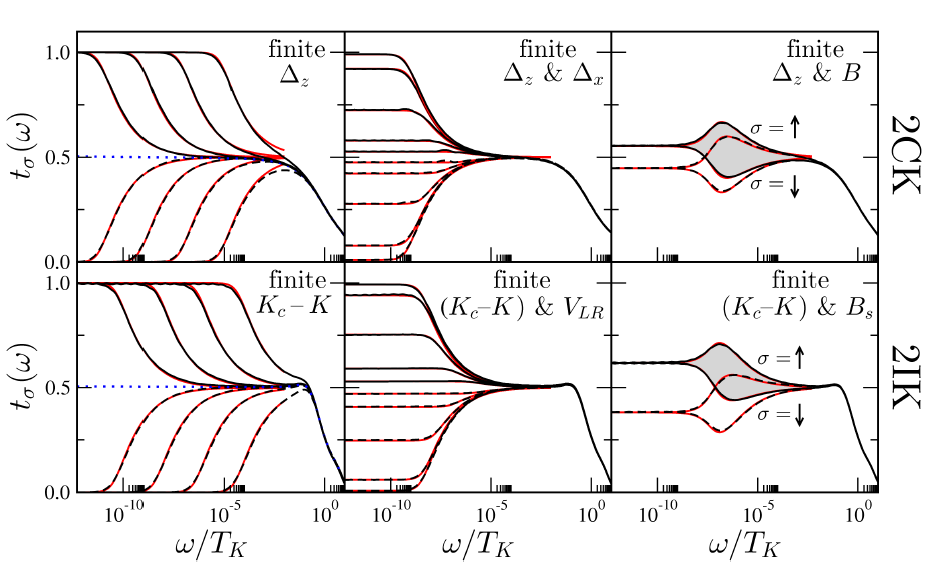

Most intriguingly, when the device is detuned away from the critical point by symmetry-breaking perturbations (naturally present in experiments), a highly non-trivial and universal crossover to the low-temperature Fermi liquid state is found. By exploiting a mapping to a 2d boundary Ising model, we developed an exact theory for the crossover, including the full temperature-dependence of conductance:
(opens in a new window)Phys. Rev. Lett.106, 147202 (2011)
(opens in a new window)Phys. Rev. B85, 235127 (2012)
Our universal Fermi liquid crossover was very recently confirmed in state-of-the-art experiments at Stanford:
(opens in a new window)Nature526, 237 (2015)

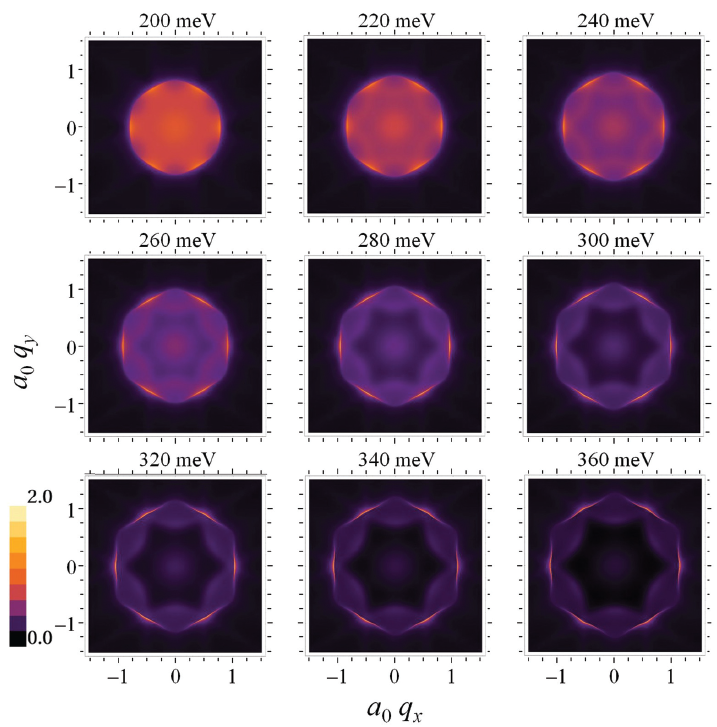

qpi

Real-space Kondo correlations

Most fundamental aspects of the Kondo effect are by now very well understood, with various detailed theoretical predictions having been confirmed directly by experiments on impurity systems or quantum dot devices. Key insights into the underlying physics have been provided by the renormalization group (RG) concept, where progressive reduction of the temperature results in RG flow between 'fixed points' that can be easily identified for a given model.

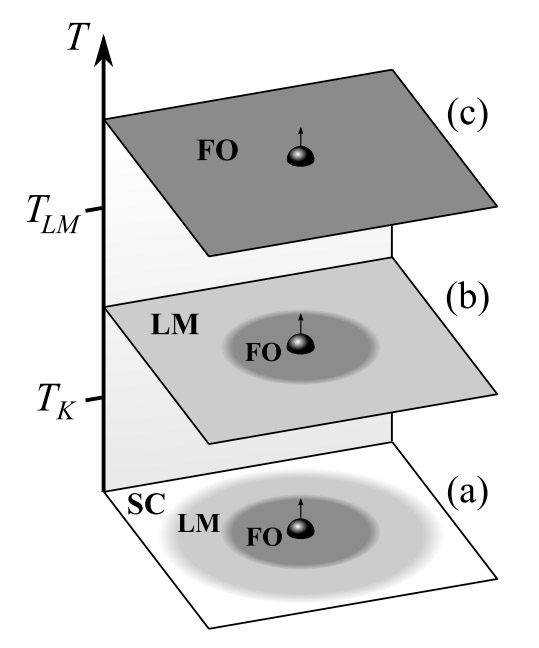

Surprisingly however, the basic physics in real-space is still quite controversial. From theory, there is the general notion of a 'Kondo Screening Cloud' -- a macroscopic real-space region of the metallic host around a magnetic impurity, inside which electrons bind to and dynamically screen the impurity spin. However, no real-space signatures of the Kondo Cloud have ever been observed experimentally. In a 1d wire system hosting an impurity (realized e.g. in a carbon nanotube quantum dot), we showed exactly and explicitly that the RG flow between fixed points can be observed in the real-space evolution of physical quantities, such as Friedel oscillations. The impurity is rather surrounded by different fixed point clouds. The Kondo cloud itself is really of local moment character; Kondo screening occurs on flowing to the strong coupling cloud at larger distances. This work is published here:
(opens in a new window)Phys. Rev. B84, 115120 (2011)
In ongoing work, we are studying real-space Kondo cloud correlations in a range of nanoscale impurity and quantum dot systems. We are also seeking a viable proposal for the first experimental observation of the Kondo cloud.

vacancies_graphene

Kondo effects in unconventional materials

We have studied unusual and exotic Kondo effects arising in a range of unconventional materials and devices, as summarized below.

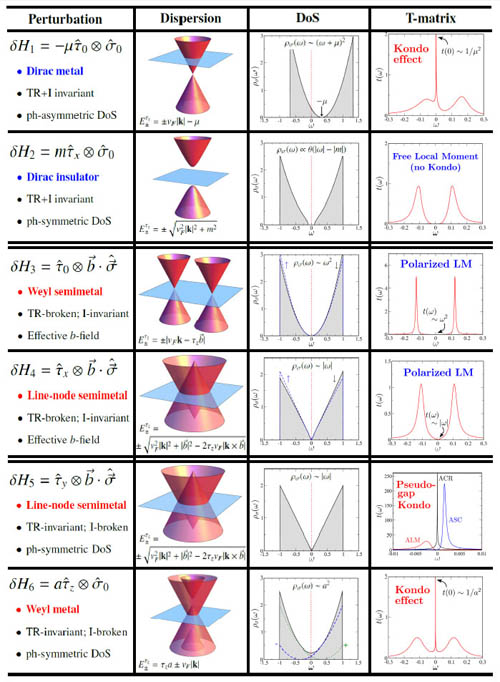

Very recently, new three-dimensional Dirac semimetal (such as Na3Bi and Cd3As2) and Weyl semimetal (such as TaAs and NbAs) systems have been discovered. The 3d Dirac cone structure leads to a host of interesting physics. In particular, the node separation in Weyl semimetals leads to surface Fermi arcs and the 'chiral anomaly'. We studied the effect on electronic scattering and scanning tunneling spectroscopy of magnetic impurities in these systems, showing that different Kondo variants and pseudogap quantum phase transitions can be realized:
(opens in a new window)Phys. Rev. B92, 121109(R) (2015)

majorana_fermions

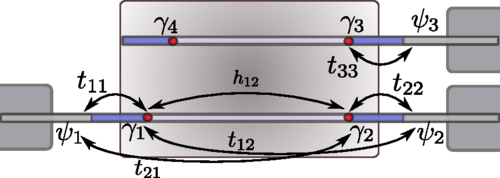

Nanowire/superconductor heterostructures have also been the focus of much attention recently, because they host topologically-protected fractionalized particles called Majorana fermions. One fascinating consequence of this is that real fermionic modes can be reconstructed from spatially-separated Majoranas, producing non-local qubits which are impervious to decoherence from local perturbations. Thus, such systems might find important application within fault-tollerant quantum computation.
However, the key role of interactions has not been fully explored. We studied the 'Topological Kondo Effect' in arising in such systems, elucidating overscreening mechanisms and calculating numerically exactly the full conductance lineshapes expected in experiment:
(opens in a new window)Phys. Rev. B 89, 045143 (2014)

Weyl_Kondo

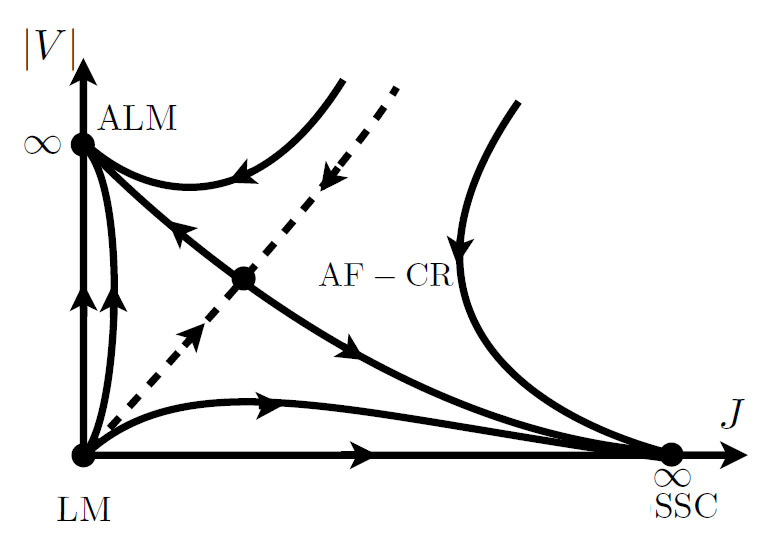

Defects in the honeycomb lattice of graphene are known to induce local moments and strong correlation effects. Distortions due to structural reconstruction around vacancies in graphene can be formulated in terms of an effective model consisting of a localized sigma-level hybridized with the pi-band. we analyze the rich quantum impurity physics of this system focusing on the special role played by the unusual local density of states, which is enhanced at low energies due to potential scattering. Depending on microscopic parameters controlled by the physical corrugations, the system can host either an exactly-screened spin-1/2 (doublet) Kondo state or an underscreened spin-1 (triplet) Kondo state:
(opens in a new window)Phys. Rev. B88, 075104 (2013)
The generalized powerlaw Kondo physics of defective graphene systems was analyzed in detail both analytically and numerically in:
(opens in a new window)Phys. Rev. B88, 195119 (2013)

The metallic surface of three-dimensional topological insulators such as Bi2Te3 feature a non-trivial locking of spin and momentum. One important consequence is that static impurities (potential defects) cannot cause backscattering, because there is no local spin-flip mechanism. Scalar disorder therefore does not cause localization or impede current flow. By contrast, magnetic impurities, which have a dynamic internal spin degree of freedom, do allow backscattering. Indeed, scattering is renormalized by interactions due to the Kondo effect. But how does the peculiar structure of the topological insulator surface affect Kondo physics? What are the experimental signatures in scanning tunneling spectroscopy and quasiparticle interference? These questions are answered here:
(opens in a new window)Phys. Rev. B87, 075430 (2013)

qpi_schematic

Scanning tunneling spectroscopy (STS) and Quasiparticle interference (QPI)

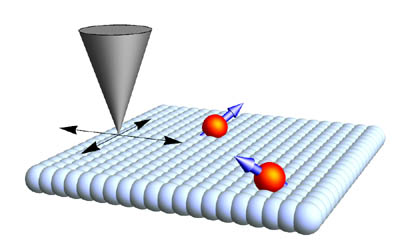

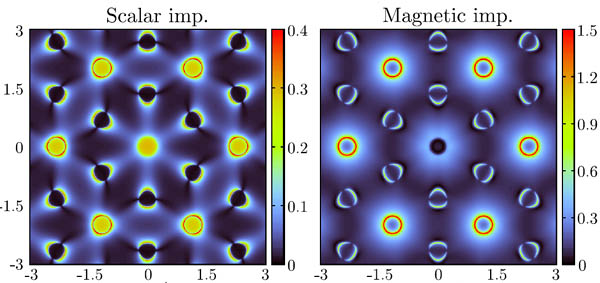

Defects or impurities in materials cause electronic scattering effects that can be locally observed experimentally using a scanning tunneling spectroscopy. By rastering the STM across a surface, a spatial electronic density map can be built up. Its Fourier transform (FT-STS) can be interpretted in terms of quasiparticle interference (QPI). In the case of magnetic impurities in particular, electronic scattering is characterized by non-trivial dynamics due to strong correlations and Kondo physics. The local STS dynamics of distorted trimeric impurity clusters were studied in:
(opens in a new window)J. Phys. Chem. B117, 12777 (2013)
The general theory of QPI due to Kondo impurities on the surface of various materials was formulated in:
(opens in a new window)Phys. Rev. B92, 035126 (2015)
We studied the Kondo-RKKY interplay for multiple magnetic impurities on the surface of 3d host metals, calculating exactly the STS response and QPI patterns:
(opens in a new window)Phys. Rev. B91, 235127 (2015)
QPI patterns due to Kondo impurities were also calculated on the surface of 3d topological insulators (including cubic warping effects):
(opens in a new window)Phys. Rev. B87, 075430 (2013)
STS signatures of magnetic impurities in 3d Dirac and Weyl semimetals were discussed here:
(opens in a new window)Phys. Rev. B92, 121109(R) (2015)

qpi_graphene

Development of numerical methods

The Numerical Renormalization Group (NRG) is a powerful method for solving quantum impurity problems, which themselves describe a diverse range of systems including interacting nanostructures, molecular electronics devices, and correlated materials within DMFT. Thermodynamic and dynamical quantities can be obtained accurately and efficiently in the state-of-the-art implementation, on essentially any energy or temperature scale. However, the exponential scaling of the method with the number of conduction electron channels/bands has previously prevented application to problems involving three or more bands. This limitation was partially overcome by our breakthrough in:
(opens in a new window)Phys. Rev. B89, 121105(R) (2014)

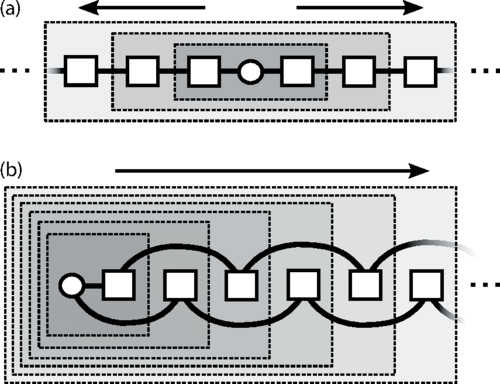

Our new method allows a wider range of problems to be studied exactly with NRG. The method involves mapping the multiple channels to a single interleaved Wilson chain. This may be important for solving within DMFT multi-band lattice problems --- such as the Hubbard-Kanamori model of the open-shell transition metal oxides.

interleaved_NRG

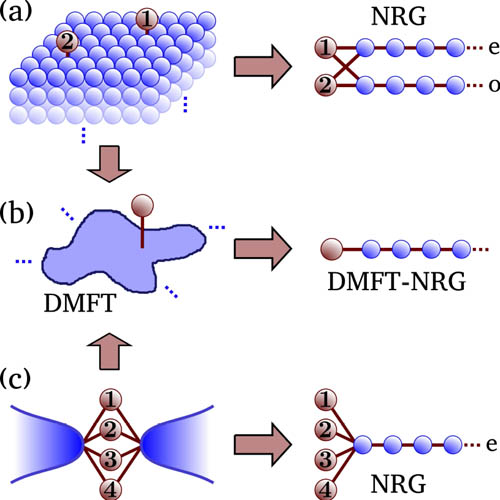

More complex problems involving many interacting degrees of freedom remain beyond reach of NRG, however. Examples include many-impurity systems, complex molecules on surfaces and molecular electronics devices. An appealing method to treat these systems approximately is dynamical mean field theory (DMFT), adapted to deal with inhomogenous systems. At its heart, the method involves a local self-energy approximation, with each inequivalent site mapped to an effective impurity problem in a self-consistently-determined effective medium. As such, the method scales linearly, rather than exponentially, with the number of interacting sites/channels. For generalized quantum impurity problems, we formulate this 'impurity-DMFT', and compare to exact NRG results for two paradigmatic models: multiple impurities on surfaces, and parallel quantum dots. We find that impurity-DMFT works very well in some cases, but can also fail spectacularly when the Kondo effect is suppressed by inter-site correlations:
(opens in a new window)Phys. Rev. B92, 155101 (2015)

impurity_DMFT

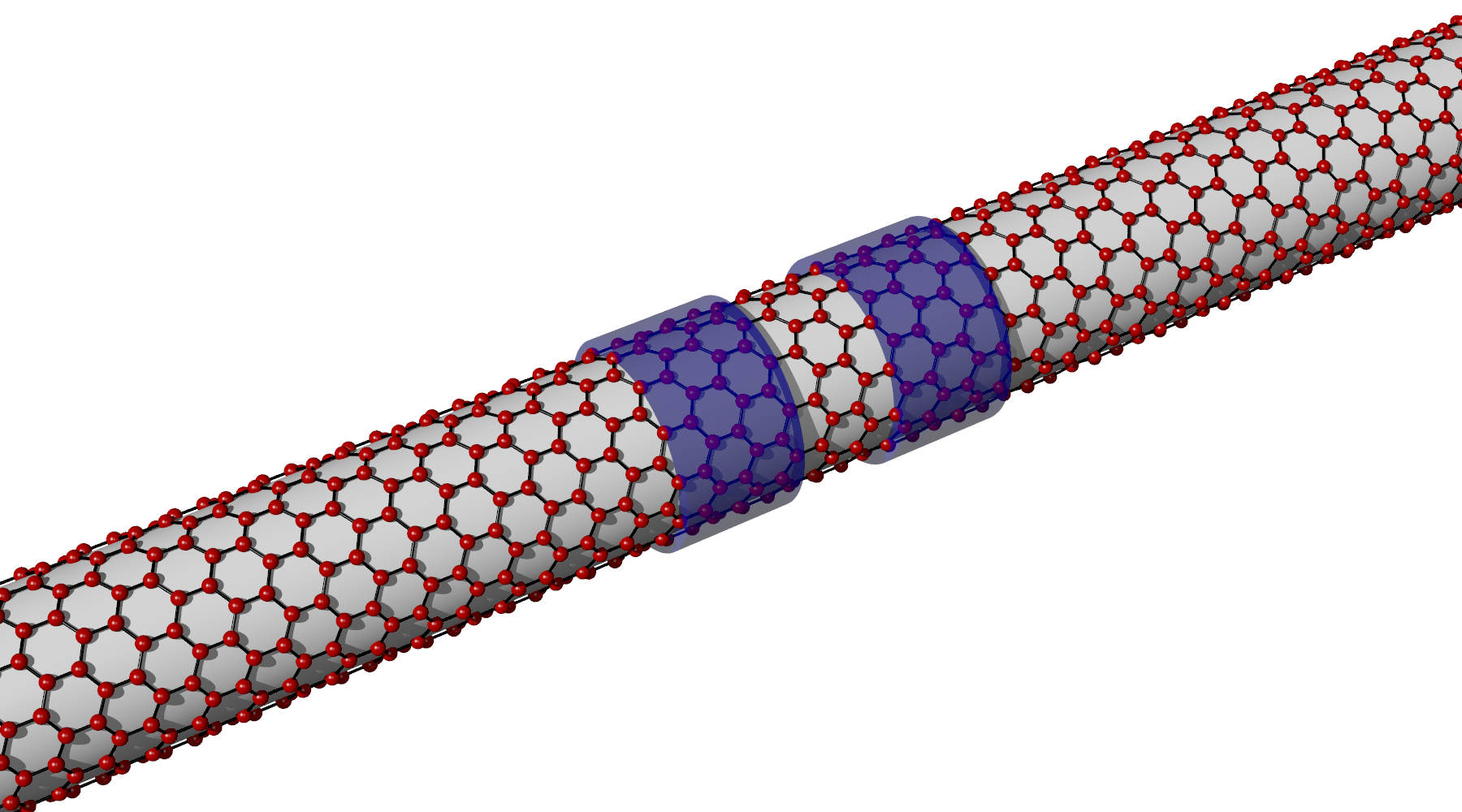

Magnetic nanostructures display a rich range of correlated electron physics, including the Kondo effect and RKKY interactions. A new feature is that of quantum confinement: the finite size of the nanostructure leads to a discrete electronic spectrum, which cuts off low-temperature RG flow. The competition between quantum confinement and Kondo or RKKY physics is subtle and requires sophisticated theoretical treatment. In a 1d geometry, DMRG is a powerful tool and can be used successfully used in this context. For more general systems, another method is required. In addition, the full crossover to the thermodynamic limit on increasing nanostructure size is an important open question. We adapted NRG to deal with these finite systems, also taking into account important Fermi level poles which would be missed by standard logarithmic discretization:
(opens in a new window)Phys. Rev. B92, 155104 (2015)
